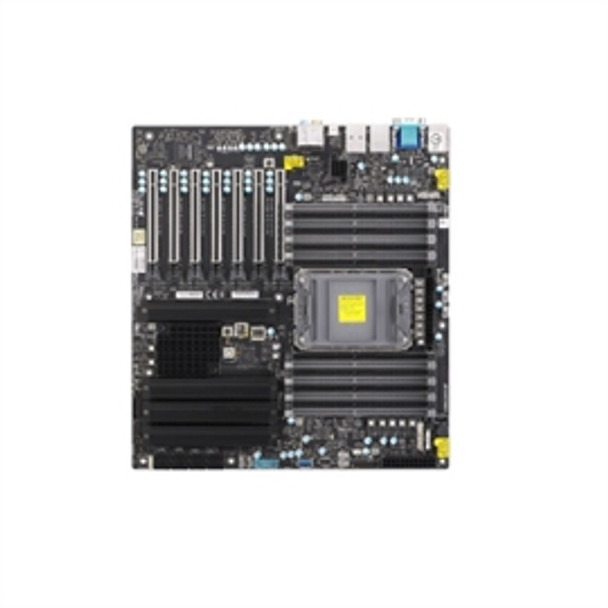

Supermicro Motherboard MBD-X12SPA-TF-O C621A LGA4189 Max4TB DDR4 PCI Express VGA E-ATX

Key Features

• 3rd Gen Intel® Xeon® Scalable processors, Intel® Xeon® W-3300 Processor

Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

• Intel® C621A

• Single LAN with Intel® Ethernet Controller I210-AT

Single LAN with Marvell AQC113

Single LAN with Realtek RTL8211F PHY (dedicated IPMI)

• Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz

Up to 4TB Intel® Optane™ Persistent Memory, DDR4-3200MHz, in 16 DIMM slots

• 4 PCI-E 4.0 x16,

3 PCI-E 4.0 x8 (in x16 slot)

M.2 Interface: 4 PCI-E 4.0 x4

M.2 Form Factor: 2260/2280/22110

M.2 Key: M-Key

M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID.

• Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• 1 VGA port,

VGA connector is dedicated for IPMI. Form Factor
E-ATX
Processor
CPU
3rd Gen Intel Xeon Scalable processors, Intel Xeon W-3300 Processor
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
Up to 40 cores
System Memory
Memory Capacity
16 DIMM slots
Up to 4TB Intel Optane^TM Persistent Memory 200 Series, DDR4-3200MHz
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
Memory Type
ECC 3DS DDR4 LRDIMM, RDIMM
DIMM Sizes
4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel C621A
SATA
Intel C621A controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2500
Audio
ALC 888S HD Audio
Graphics
ASPEED AST2500 BMC
VGA connector is dedicated for IPMI.
Network Controllers
Single LAN with Intel Ethernet Controller I210-AT
Single LAN with Realtek RTL8211F PHY (dedicated IPMI)
Single LAN with Marvell AQC113
Input / Output
LAN
1 RJ45 Dedicated IPMI LAN port
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 10GBase-T ports
USB
4 USB 2.0 port(s) (2 rear, 2 via header)
6 USB 3.2 Gen1 port(s) (2 via header, 4 rear)
2 USB 3.2 Gen2 port(s) (1 type A, 1 type C)
1 USB 3.2 Gen2x2 port(s) (1 rear type C)
USB 3.2 Gen2 (1 Type A Vertical, 1 Type C header)
Video Output
1 VGA port(s)
Serial Port
2 COM Port(s) (1 header, 1 rear)
DOM
1 SATA DOM power connector (Disk on Module) port
TPM
1 TPM Header
Expansion Slots
PCI-E
4 PCI-E 4.0 x16,
3 PCI-E 4.0 x8 (in x16 slot)
PCI-Ex16 Slot number 1 shares with M.2, Slot number 2 shares with Slot number 3(NA/16,8/8), Slot number 4 shares with Slot number 5(NA/16,8/8), Slot number 6 shares with Slot number 7(NA/16,8/8)
