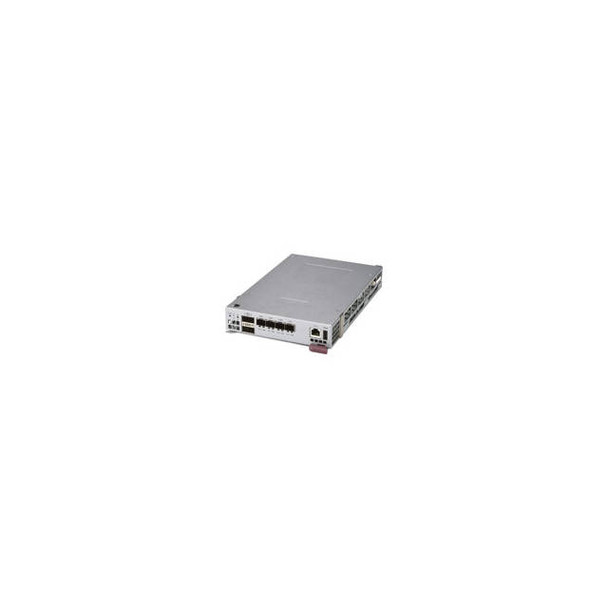

Supermicro MicroBlade MBM-XEM-002 Switch Module

(No reviews yet) Write a Review
Brand:
SuperMicro
Part Number #
MBM-XEM-002
Availability:
In Stock
$5,243.66 $4,369.72
- You save $873.94
  • Supermicro MicroBlade MBM-XEM-002 Switch Module
  • Supermicro MicroBlade MBM-XEM-002 Switch Module
  • Supermicro MicroBlade MBM-XEM-002 Switch Module
  • Supermicro MicroBlade MBM-XEM-002 Switch Module
Don't like the price? Make an offer!
Get bulk pricing

Description

Specifications

  • Mfr Part Number: MBM-XEM-002
  • General Specifications:
    • Broadcom BCM56846 10GbE Low Latency Switch
    • 2x 40Gbps QSFP or 4x 10Gbps SFP+ uplinks
    • 56x 10Gbps or 1Gbps downlinks
    • 1x Console port
    • 1x USB port
  • Switching Capacity: 1280Gbps
  • Features:
    • Physical Layer:
      • Jumbo frames up to 9KB
      • 40 gigabit optical/copper
      • 10 gigabit optical Ethernet SFP+/copper
    • Layer 2:
      • 4K VLANS
      • Spanning Tree (802.1D)
      • Rapid Spanning Tree (802.1w)
      • Multiple Spanning Trees (802.1s)
      • IEEE 802.lQ VLANs/ port-based VLANs
      • IEEE 802.3ad with LACF
      • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
    • Advanced Layer 2:
      • Storm control
      • Flow control
      • Port mirroring
    • Other:
      • IP Source Guard
      • VRRP
    • Security:
      • Switch access password protection
      • RADIUS and TACACS+ Authentication
      • Access Control Lists (to 4K)
      • SSH, SSL Encryption
  • System Management:
    • XML-RPC
    • Industry Standard CLI
    • Command completion
    • SNMP v1/v2/v3
    • SSH
    • Syslog
    • DHCP (Client)
    • Web-based management interface – (future)
    • NTP
    • RMON
  • Multicast: IGMP Snooping
  • Dimensions (WxDxH): 10.50 x 6.25 x 1.40 inch / 267.0 x 159.0 x 36.0 mm
  • Weight: 3.2 lbs / 1.5 kg
