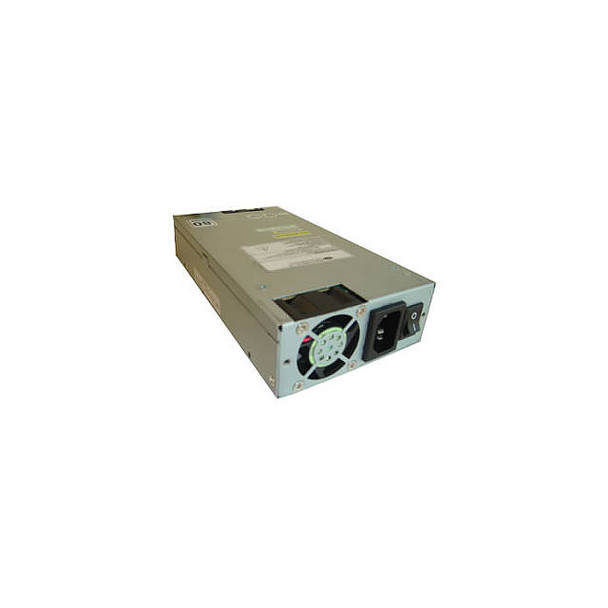

Sparkle SPI3501UH-B204 350W 80Plus 1U Switching Power Supply

(No reviews yet) Write a Review
Brand:
Sparkle
Part Number #
SPI3501UH-B204
Condition:
Refurbished
Availability:
IN STOCK - COMES WITH 30 DAYS WARRANTY
$225.00 $188.00
- You save $37.00
  • Sparkle SPI3501UH-B204 350W 80Plus 1U Switching Power Supply
Don't like the price? Make an offer!
Get bulk pricing

Description

Specifications

  • Mfr Part Number: SPI3501UH-B204
  • Features:
    • Complied with ATX 12V and EPS12V standard
    • Active Power Factor Correction (PFC) meet EN61000-3-2
    • High efficiency and reliability
    • Compatible with European Union Directive 2002/95/EC
      • (Restriction on Hazardous Substances)
    • Remote ON/OFF function
    • Internal 12V DC fan included
    • Noise Killer (thermal fan speed control function)
    • Low noise and ripple
    • Output over voltage, short circuit, and over current protection
    • 100% Hi-pot, ATE, and burn-in tested
    • Re-settable power shut down
    • Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation
    • Approved by UL/CUL6095-1, TUV EN60950-1, CB,EMC,FCC
  • Input:
    • Input Range: 90 ~ 264Vac, Full Range
    • Frequency: 47~63 Hz
    • Input Current: Max 6A @ 115Vac, 3A@ 230Vac
    • Inrush Current: No damage
  • Output:
    • Total Power: 350 W
    • Output Voltage: +3.3V @ 16A; +5V @ 18A; +12V1 @ 16A; +12V2 @ 16A; -12V @ 0.8A; -5Vsb @ 0.3A; +5Vsb @ 1.25A
  • Efficiency: typical upto 84%
  • Rise time: Less than 20ms
  • Hold-up Time: 17ms minimum at nominal input voltage
  • Power Good Signal: Power on delay time 100~500ms, off delay 1ms minimum (TTL and CMOS compatible)
  • Dielectric Withstand: Primary frame ground 1800V AC for 1 second
  • Leakage Current: Less than 3.5mA at 264Vac/50Hz
  • MTBF: 100,000 hours on maximum load at +25°C
  • Dimensions (WxLxH): 3.9 x 7.5 x 1.6 inch / 100 x 190 x 40.5 mm
