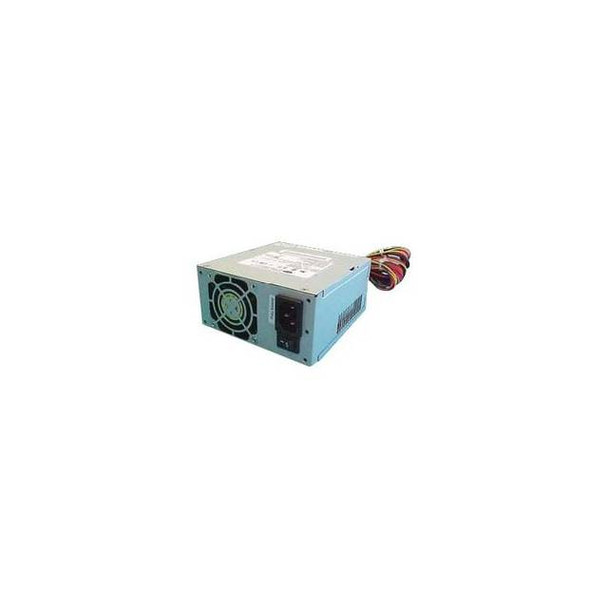

Sparkle FSP300-60GNV-5K 300W SFX12V Switching Power Supply w/ Active PFC

(No reviews yet) Write a Review
Brand:
Sparkle
Part Number #
FSP300-60GNV-5K
Condition:
Refurbished
Availability:
IN STOCK - COMES WITH 30 DAYS WARRANTY
$225.00 $188.00
- You save $37.00
  • Sparkle FSP300-60GNV-5K 300W SFX12V Switching Power Supply w/ Active PFC
Don't like the price? Make an offer!
Get bulk pricing

Description

Specifications

  • Mfr Part Number: FSP300GNV5K-B204(FSP300-60GNV-5K)
  • Features:
    • Complied with SFX and SFX12V standard
    • Active Power Factor Correction (PFC) meet EN61000-3-2
    • High efficiency and reliability
    • Remote On/Off function
    • Internal 12V DC fan included
    • Noise Killer (Thermal fan speed control function)
    • Low noise and ripple
    • Complies with FCC part 15 subpart J clsdd B 115Vac operation, and CISPR 22 class B at 230Vac operation
    • Output over voltage, short circuit, and over current protection
    • 100% Hi-pot, ATE, and burn-in tested
    • Re-settable power shut down
    • Approved by CUL/UL60950-1, TUV EN60950-1, CB Report IEC 60950-1, CE
  • Input:
    • Input Range: 90 ~ 265Vac
    • Frequency: 47 ~ 63Hz
    • Input Current: 4A @ 115Vac, 2A (RMS) @ 230Vac
    • Inrush Current: No damage, typical 80A Max mat cold start
  • Output:
    • Total Watts: 300W
    • Output Voltage: +3.3V @ 18A, +5V @ 18A, +12V1 @ 8A, +12V2 @ 16A, -12V @ 0.5A, +5VSB @ 2A
    • +3.3V and +5V Total Output not Exceed 125W
  • Dielectric Withstand: Input to frame ground 1800 VAC for 1 second
  • Efficiency: 70% at light load and 75% at typical load and full load
  • Rise Time: Less than 20ms (5VSB less than 25ms)
  • Hold-up Time: 17ms minimum at nominal input voltage
  • Power Good Signal: Power on delay time 100 ~ 500ms, Off delay 1ms minimum (TTL and CMOS compatible)
  • Leakage Current: Not exceed 3.5 mA
  • MTBF: 100,000 hours on maximum load at +25°C
  • Dimensions (WxLxH): 5.0 x 5.1 x 2.5 inch / 125.0 x 130.0 x 63.5 mm
  • RoHS Compliant
