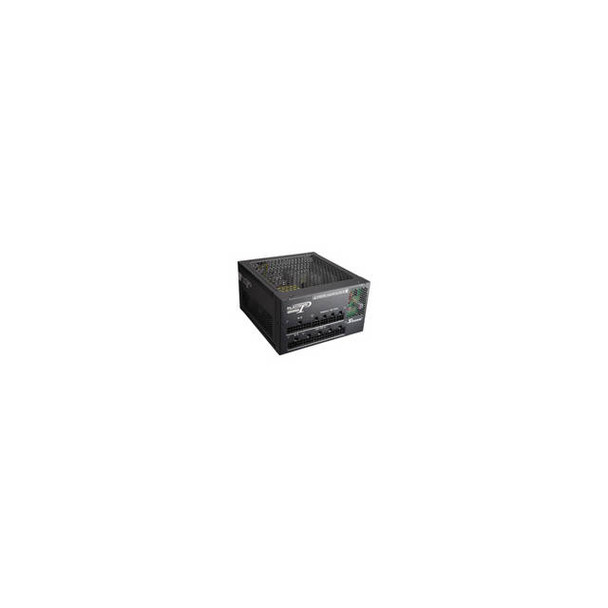

Seasonic SS-520FL2 Active PFC F3 520W 80 PLUS Platinum ATX12V/EPS12V Fanless Power Supply

(No reviews yet) Write a Review
Brand:
Seasonic
Part Number #
SS-520FL2
Availability:
IN STOCK - COMES WITH 30 DAYS WARRANTY
$579.42 $482.85
- You save $96.57
  • Seasonic SS-520FL2 Active PFC F3 520W 80 PLUS Platinum ATX12V/EPS12V Fanless Power Supply
Don't like the price? Make an offer!
Get bulk pricing

Description

Specifications

  • Mfr Part Number: SS-520FL
  • Features:
    • 80PLUS Platinum Certified Super High Efficiency
    • Full Modular Cabling Design
    • Fanless - 0dBA
    • Patented DC Connector Module with Integrated VRM (Voltage Regulator Module)
    • DC to DC Converter Design
    • Conductive Polymer Aluminum Solid Capacitors
    • Highly Reliable 105°C Japanese Aluminum Electrolytic Capacitors
    • Tight Voltage Regulation (±2%)
    • Active Power Factor Correction (99% PF Typical)
    • Gold Plated High Current Terminals
    • Dual Sided PCB Layout
    • Ultra Ventilation (Honeycomb Structure)
    • Multi-GPU Technology Support
    • All-in-One DC Cabling Design
    • Easy Swap Connector
    • Universal AC Input (Full Range)
  • Total Power: 520W
  • AC Input Range: 100 ~ 240 V / 7.0~4.0 A, 50/60 Hz
  • Efficiency: 80 PLUS Platinum/ Energy Star/ ErP Lot 6 2013 Compliant
  • Protection: OPP/ OVP/ UVP/ OCP/ OTP/ SCP
  • Hazardous Materials: WEEE, RoHS
  • Safety: C-UL, TUV, CB, PCT, C-tick, CCC, CE, FCC
  • Output: +3.3V @ 20A, +5V @ 20A, +12V @ 43A, -12V @ 0.5A, +5Vsb @ 2.5A
  • Connectors: 1x 24/20-pin M/B Connector, 1x 8/4-pin CPU Connector, 2x 8/6-pin PCI-Express Connectors, 5x 4-pin Peripheral Connectors, 6x SATA Connectors, 1x Floppy Connector (Y-adapter)
  • Dimensions (WxLxH): 150.0 x 160.0 x 86.0 mm
