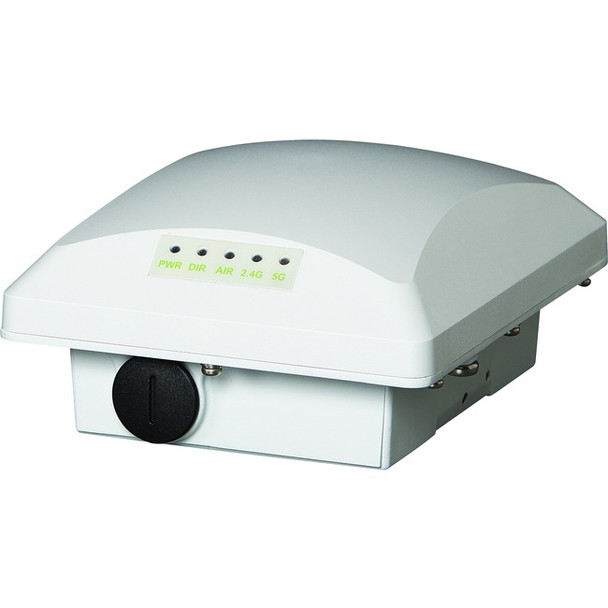

Ruckus Wireless ZoneFlex T300e IEEE 802.11ac 1.17 Gbit/s Access Point - 9U1-T300-US81

Specifications
Manufacturer: Ruckus Wireless, Inc
Manufacturer Part Number: 9U1-T300-US81
Manufacturer Website Address: http://www.ruckuswireless.com
Brand Name: Ruckus Wireless
Product Line: ZoneFlex
Product Series: T300
Product Model: T300e
Product Name: ZoneFlex T300e Wireless Access Point
Marketing Information:

802.11AC SMART WIFI OUTDOOR ACCESS POINTS

High Capacity, High Performing Outdoor Access Points
The ZoneFlex T300 Series Unleashed enable controller-less Wi-Fi architecture for small business environments with superior performance, lower costs and simplified management. Separate controllers and access point licenses are no longer needed, significantly reducing upfront costs. Set up is also easy, thanks to a simplified web interface that helps businesses configure Wi-Fi in just 60 seconds.

The ZoneFlex T300 Series are the first dual-band 802.11ac outdoor access points (APs) designed explicitly for high density public venues such as airports, conventions centers, plazas & malls, and other dense urban environments.

These environments require support for users that demand high capacity and mobile device ready WLAN services. The T300 is uniquely designed to serve these demanding environments with dual-polarized adaptive antennas that dynamically select the best antenna patterns on a per packet basis to provide reliable client connections and to increase network capacity while implicitly mitigating interference and improving signal-to-interference -plus-noise ratio (SINR).

In addition, the T300 Series uniquely leverages a predictive model for channel selection (ChannelFly) that uses actual activity to learn what channels will yield the most capacity to provide the highest client speeds and reduced interference.

Designed for easy installation within an ultra lightweight and low profile enclosure, the T300 Series is ideal for venue owners and enterprises looking to quickly and economically deploy Wi-Fi in high-capacity environments.

With the T300, venue operators can now deliver an enhanced Wi-Fi experience, which directly translates into increased customer loyalty and ultimately increased revenue.

BENEFITS

Unleash the performance
In the Unleashed version, the ZoneFlex T300 series is capable of supporting controller-less deployments for up to 25 access points and 512 concurrent clients

High speed client performance with integrated adaptive antennas
Patented BeamFlex technology greatly improves connection reliability and increases WLAN capacity

Light, slim design for easy deployment
Compact, lightweight design with integrated antennas provide flexible deployment options with quick and easy installation

Highly Scalable
The ability to cost effectively scale high density networks

Predictive channel selection for increased capacity and reduced interference
ChannelFly automatically selects the best performing channel based on statistical, real-time capacity analysis of all RF channels

Standard 802.3af power
Easy installation using standard 802.3af PoE switches or PoE injectors

Unmatched Wi-Fi capacity and reliability
BeamFlex delivers up to 4 dB of added signal gain and up to 10dB of interference mitigation

Enhanced receive capabilities
Support for signal polarization diversity with maximal ratio combining (PD-MRC) ensures reliable connectivity for mobile devices

Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band:

• 5 GHz
• 2.40 GHz

Wireless Transmission Speed: 1.17 Gbit/s
Interfaces/Ports
Ethernet Technology:

• Ethernet
• Fast Ethernet
• Gigabit Ethernet

Number of Network (RJ-45) Ports: 1
PoE (RJ-45) Port: Yes
PoE PD Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: No
Physical Characteristics
Form Factor:

• Pole-mountable
• Wall Mountable

Height: 3.4"
Width: 7"
Depth: 5.9"
Weight (Approximate): 2 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:

• RoHS
• WEEE
• EU RoHS
