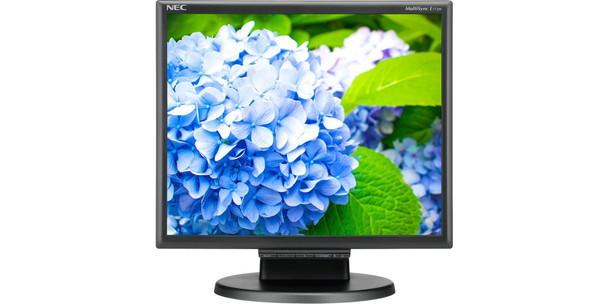

NEC Display E172M-BK 17" SXGA LED LCD Monitor - 5:4 - Black - E172M-BK

Specifications
Manufacturer: NEC Display Solutions
Manufacturer Part Number: E172M-BK
Manufacturer Website Address: http://www.necdisplay.com
Brand Name: NEC Display
Product Model: E172M-BK
Product Name: 17" Desktop Monitor with LED Backlighting
Marketing Information:

Boost your productivity while being environmentally friendly with the 17" NEC MultiSync E172M, an eco-conscious LED backlit LCD desktop monitor that enhances your computing experience. The LED backlighting of the E172M allows for lighter weight and increased power savings compared to previous generation models, a carbon footprint meter for tracking the conservation of green gas emissions and Intelligent Power Manager (IPM) system. These advantages, combined with an ergonomic design make this model ideal for corporate environments.

1080p native resolution (1920x1080)

High resolution provides detailed display of text, graphics and images. HD video is displayed in 16:9 wide aspect ratio.

LED Backlight

Provides for industry-leading low power consumption and less hazardous materials.

No Touch Auto Adjust™

Allows the monitor to be automatically adjusted to optimal image settings when initially turned on.

XtraView®

Delivers wide viewing angles of up to 176º horizontally and vertically (up to 88º up, down, left and right) without any glare, reflection or distortion.

Ambix®

Allows up to two inputs (VGA and DVI-I) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button.

Product Type: LCD Monitor
Technical Information
Number of Screens: 1
Viewable Screen Size: 17"
Screen Mode: SXGA
Panel Technology: Twisted nematic (TN)
Response Time: 5.50 ms
Aspect Ratio: 5:4
Pixel Pitch: 10.2 mil
Backlight Technology: LED
Mount Type: Desk Mountable
HDCP Supported: Yes
Horizontal Frequency: 31.50 kHz to 81 kHz - Analog/Digital
Vertical Frequency: 50 Hz to 75 Hz
Stand Adjustments:

• Tilt
• Height
• Swivel

Adjustable Stand Height: Yes
Video
Maximum Resolution: 1280 x 1024
Standard Refresh Rate: 75 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 250 Nit - Typical
Color Gamut:

• 76.1% Adobe RGB
• 72.7% NTSC
• 102.7% sRGB

Audio
Speakers: Yes
Interfaces/Ports
DVI: Yes
HDMI: Yes
VGA: Yes
DisplayPort: Yes
Power Description
Operating Power Consumption: 12 W
Standby Power Consumption: 250 mW
Physical Characteristics
VESA Mount Compatible: Yes
Color: Black
Height: 12.6"
Width: 14.5"
Depth: 2.4"
Height with Stand: 16.08"
Width with Stand: 14.49"
Depth with Stand: 9.06"
Weight (Approximate): 6.17 lb
Weight with Stand (Approximate): 8.82 lb
Miscellaneous
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:

• TCO 8.0
• ENERGY STAR 8.0
• RoHS
