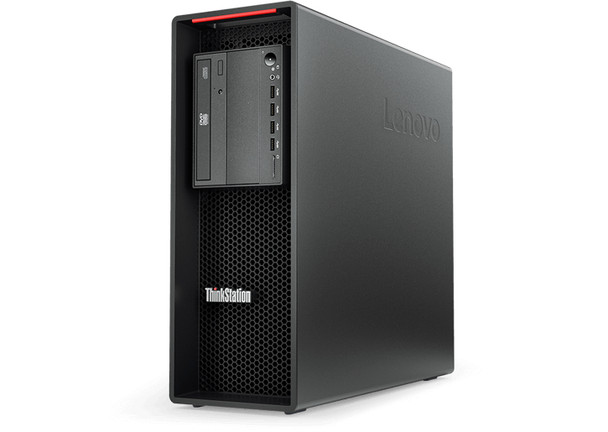

Lenovo ThinkStation P520 4GHz W-2125 Tower Black Workstation
(No reviews yet)
Write a Review
- Brand:
- LENOVO
- Part Number #
- 30BE004VUS
- Availability:
- In Stock
$3,545.40
$2,954.50
- You save $590.90
Description
| Processor | |
|---|---|
| Stepping | U0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Bus type | QPI |
| Maximum internal memory supported by processor | 512 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400,2666 MHz |
| Thermal Design Power (TDP) | 120 W |
| Tcase | 64 °C |
| PCI Express configurations | 1x16,1x4,1x8 |
| Maximum number of PCI Express lanes | 48 |
| Memory bandwidth supported by processor (max) | 85.3 GB/s |
| Memory channels supported by processor | Quad |
| ECC supported by processor | Yes |
| Conflict Free processor | Yes |
| Processor cache | 8.3 MB |
| Processor frequency | 4.00 GHz |
| Processor model | W-2125 |
| Number of processors installed | 1 |
| Processor boost frequency | 4.50 GHz |
| Processor socket | LGA 2066 |
| Processor threads | 8 |
| Processor cores | 4 |
| PCI Express slots version | 3.0 |
| Processor family | Intel® Xeon® |
| Memory | |
| ECC | Yes |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory | 256 GB |
| Memory slots | 8x DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Storage | |
| Storage media | SSD |
| Solid-state drive interface | M.2 |
| Solid-state drive capacity | 512 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | Yes |
| Total storage capacity | 512 GB |
| Optical drive | |
| Optical drive type | DVD±RW |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Technical details | |
| Intel 64 | Yes |
| Product type | Workstation |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Colour of product | Black |
| Chassis type | Tower |
| Design | |
| Colour of product | Black |
| Chassis type | Tower |
| Performance | |
| Embedded options available | No |
| Product type | Workstation |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Supported instruction sets | AVX,AVX 2.0,AVX-512,SSE4.2 |
| Scalability | 1S |
| Processor package size | 45 x 52.5 |
| Processor code | SR3LM |
| Physical Address Extension (PAE) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 126708 |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Physical Address Extension (PAE) | 46 bit |
| Power | |
| Power supply input frequency | 50/60 |
| Power supply input voltage | 100 - 240 |
| Power supply | 690 W |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Certificates | |
| RoHS compliance | Yes |
| EPEAT compliance | Gold |
| Energy Star certified | Yes |
| Weight & dimensions | |
| Volume | 33 L |
| Width | 6.5" (165 mm) |
| Depth | 18.1" (460 mm) |
| Height | 17.3" (440 mm) |
| Weight | 52.9 lbs (24 kg) |
| Packaging content | |
| Display included | No |
