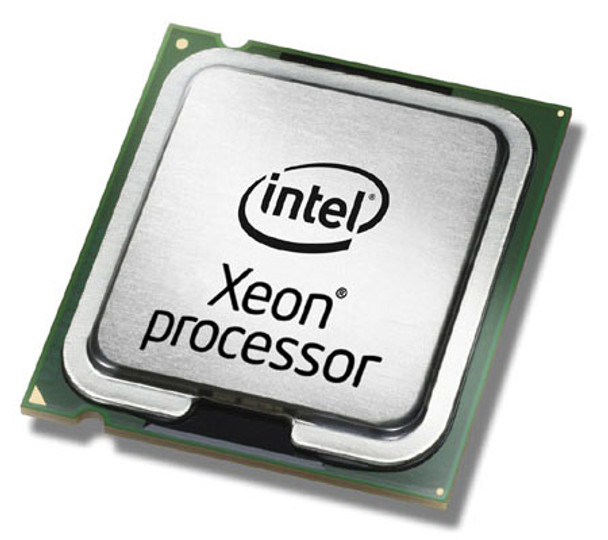

Intel Xeon E5-2683 v4 2.1GHz 40MB Smart Cache Box processor
(No reviews yet)
Write a Review
- Brand:
- Intel
- Part Number #
- BX80660E52683V4
- Availability:
- In Stock
$2,925.86
$2,340.69
- You save $585.17
Description
| Processor | |
|---|---|
| Processor codename | Broadwell |
| Processor cache | 40 MB |
| Processor frequency | 2.1 GHz |
| Processor model | E5-2683V4 |
| Processor threads | 32 |
| System bus rate | 9.6 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3 GHz |
| Number of QPI links | 2 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel Xeon E5 v4 |
| Processor cores | 16 |
| Box | Yes |
| Processor socket | LGA 2011-v3 |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor cache type | Smart Cache |
| Memory | |
| Maximum internal memory supported by processor | 1536 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Memory channels supported by processor | Quad |
| ECC supported by processor | Yes |
| Graphics | |
| On-board graphics adapter | No |
| Power | |
| VID Voltage Range | 0 - 0 V |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® vPro™ Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x4,1x8 |
| Scalability | 2S |
| Physical Address Extension (PAE) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 120 W |
| Processor series | Intel Xeon E5-2600 v4 |
| Physical Address Extension (PAE) | 46 bit |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | Smart Cache |
| Features | |
| Maximum number of PCI Express lanes | 40 |
| Thermal Design Power (TDP) | 120 W |
| Processor package size | 45 x 52.5 |
| Processor ARK ID | 91766 |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x4,1x8 |
| Scalability | 2S |
| Physical Address Extension (PAE) | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Physical Address Extension (PAE) | 46 bit |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict Free processor | Yes |
| Intel® OS Guard | Yes |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Intel® vPro™ Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Operational conditions | |
| Tcase | 84 °C |
| Other features | |
| CPU configuration (max) | 2 |
