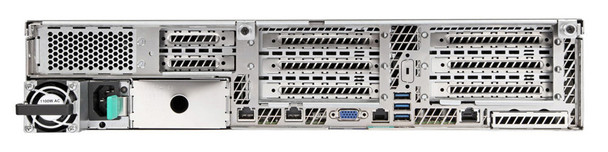

Intel R2208WT2YSR LGA 2011-v3 2U Stainless steel server barebone

(No reviews yet) Write a Review

Brand:

Intel

Part Number #

R2208WT2YSR

Availability:

In Stock

$2,188.10 $1,750.48

- You save $437.62

Description
Read Before Ordering

Description

Processor
Processor socket	LGA 2011-v3
Processor family	Intel
Number of processors supported	2
Intel Xeon series	E5-2600
Compatible processor series	IntelÂ® XeonÂ®
Memory
Supported RDIMM clock speeds	1600,1866,2133 MHz
Supported memory types	DDR4-SDRAM
Number of DIMM slots	24
Maximum RDIMM memory	1536 GB
Maximum internal memory	1536 GB
ECC	Yes
Hard drive
RAID levels	0, 1, 10
Hot-swap hard drive bays	Yes
Storage
Number of storage drives supported	8
RAID levels	0, 1, 10
Hot-swap hard drive bays	Yes
Embedded USB (eUSB) SSD option	Yes
Storage drive sizes supported	2.5"
Networking
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN	Yes
Chassis
Form factor	2U
Ports & interfaces
USB 2.0 ports quantity	5
Serial ports quantity	2
InfiniBand	No
Ethernet LAN (RJ-45) ports	2
Expansion slots
PCI Express x8 (Gen 3.x) slots	7
PCI Express x4 (Gen 2.x) slots	1
PCI Express x8 slots	7
PCI Express x4 slots	2
PCI Express slots version	2.0, 3.0
Design
Number of fans	1 fan(s)
Redundant fans support	Yes
Rack-Friendly board	Yes
Rack rails	No
Heat sink included	Yes
Heat sink	2
Form factor	2U
Colour of product	Stainless steel
Chassis type	2U Rack
Product family	2U server system
Product series	Intel R2000WT
Product codename	Wildcat Pass
Performance
Intel Quiet System Technology (QST)	Yes
Intel I/O Acceleration Technology	Yes
Intel Flex Memory Access	Yes
Intel Fast Memory Access	Yes
Intel Rapid Storage Technology enterprise	Yes
Intel Rapid Storage Technology	No
IntelÂ® Matrix Storage Technology (IntelÂ® MST)	No
Internal I/O Expansion Module x8 Gen 3	1
Intel Server Customization Technology	Yes
Intel Quiet Thermal Technology	Yes
Intel Efficient Power Technology	Yes
Intel Build Assurance Technology	Yes
Intel Advanced Management Technology	Yes
Trusted Platform Module (TPM) version	1.2
Trusted Platform Module (TPM)	Yes
Intel Remote Management Module Support	Yes
Intel On-Demand Power Redundancy Technology	Yes
Intel Intelligent Power Node Manager	Yes
Integrated BMC with IPMI	Yes
Backplanes support	Yes
Technical details
ARK ID	88288
USB ports quantity	5
Total number of SATA connectors	10
Product type	15
PCI Express x8 (Gen 3.x) slots	7
PCI Express x4 (Gen 2.x) slots	1
Packaging content	(1) Intel Server Board S2600WT2R w/ Dual 1GbE; (1) front I/O panel assembly (front 1xVGA and 2x USB); (1) airduct; (1) standard control panel board (FXXFPANEL); (1) ODD bay for SATA Optical drive bay with filler panel (Include: optical drive mounting latch kit and 300mm optical drive / internal mount SSD power cable); (8) 2.5 inch hot-swap drive carriers (FXX25HSCAR); (1) 12Gb SAS backplane (FXX8X25S3HSBP); (2) 730mm SAS/SATA Multiport data cable with straight SFF8643 to straight SFF8643 connectors (AXXCBL730HDHD); (2) heatsinks (FXXCA84X106HS); (6) redundant and hot-swap cooling fans (FR2UFAN60HSW); (2) risers with 3x8 PCIe* 3.0 slots on each (2x FHFL 1x FHHL) (A2UL8RISER2); (1) riser with 1x8 PCIe* 3.0 slot and 1x4 PCIe* 2.0 slot (A2UX8X4RISER); (1) battery backup unit bracket with three mounting locations over the airduct; (1) 1100W AC power supply (FXX1100PCRPS)
Number of storage drives supported	8
Number of 2.5" bays	8
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Maximum internal memory supported by processor	1536 GB
Number of fans	1 fan(s)
Intel Server Customization Technology	Yes
Intel Quiet Thermal Technology	Yes
Intel Efficient Power Technology	Yes
Intel Build Assurance Technology	Yes
Intel Advanced Management Technology	Yes
Trusted Platform Module (TPM) version	1.2
Trusted Platform Module (TPM)	Yes
Redundant fans support	Yes
Rack-Friendly board	Yes
Rack rails	No
Intel Remote Management Module Support	Yes
Intel On-Demand Power Redundancy Technology	Yes
Intel Intelligent Power Node Manager	Yes
Integrated BMC with IPMI	Yes
InfiniBand	No
Heat sink included	Yes
Heat sink	2
Embedded USB (eUSB) SSD option	Yes
CPU configuration (max)	2
Chassis type	2U Rack
Backplanes support	Yes
Supported board	Intel Server Board S2600WT2R
Status	Launched
Power
Power supply type	AC
Power supply	1100 W
Number of power supply units	1
Colour
Colour of product	Stainless steel
Features
Product codename	Wildcat Pass
Other features
On-board graphics adapter	Yes
CPU configuration (max)	2
