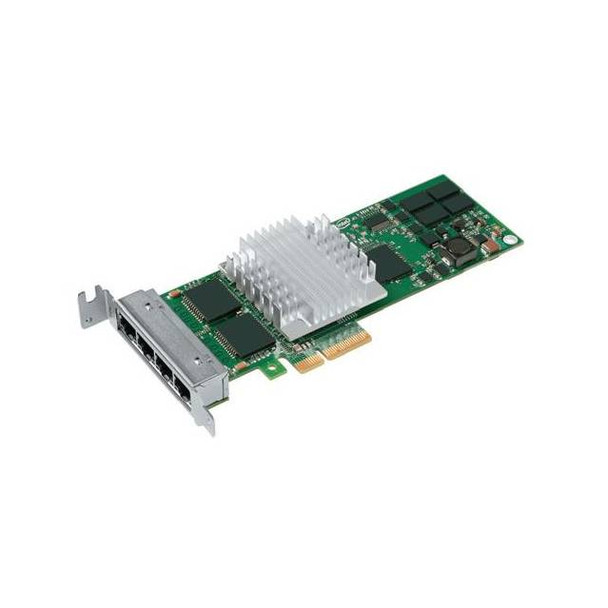

Intel EXPI9404PTLBLK PRO/1000 PT 4-Port Low Profile PCI-E Server Adapter,

(No reviews yet) Write a Review
Brand:
Intel
Part Number #
EXPI9404PTLBLK LOW PROFILE
Availability:
In Stock
$610.55 $508.79
- You save $101.76
  • Intel EXPI9404PTLBLK PRO/1000 PT 4-Port Low Profile PCI-E Server Adapter,
Don't like the price? Make an offer!
Get bulk pricing

Description

Specifications
  • Mfr Part Number: EXPI9404PTLBLK LOW PROFILE
  • Features:
    • Two Intel 82571GB Gigabit Controllers
    • Low-profile
    • Load balancing on multiple CPUs
    • Intel I/OAT
    • Virtualization
    • Interrupt moderation
    • Compatible with x4, x8, and x16 full-height PCI-Express slots
    • Support for most network operating systems (NOS)
    • Remote management support
    • Category-5 unshielded twisted pair (UTP), 4-pair cabling
    • RoHS compliant, lead-free technology
    • Intel PROSet Utility for Windows
    • Advanced cable diagnostics
    • Intel backing
  • Connectors: 4x RJ-45
  • IEEE standards/network topology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Wiring: Category-5, unshielded twisted pair (UTP), 4-pair
  • Network Management:
    • Wired for Management (WfM) baseline v2.0 enabled for servers
    • DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP-manageable SMBus support
    • Remote Installation Services (RIS)
    • Diagnostics (loopback, testability, PHY register access)
    • Advanced configuration and power interface (ACPI) 1.0 power management
    • Wake on LAN support over PCI-Express
    • PXE 2.0 enabled through boot read-only memory (ROM)
  • Advanced Software Features:
    • Adapter fault tolerance (AFT)
    • Switch fault tolerance (SFT)
    • Adaptive load balancing (ALB)
    • Fast EtherChannel (FEC)
    • Gigabit EtherChannel (GEC)
    • Teaming support: Scales upto 8 connections
    • Multiple teams: Supports 4 separate teams, maximum
    • IEEE 802.3ad (link aggregation control protocol)
    • Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)
    • PCIe Hot Plug/Active peripheral component interconnect (PCI)
    • IEEE 802.1Q VLANs
    • IEEE 802.3 (z, ab, u, x) flow control support
    • TCP checksum offload - transmission control protocol (TCP), user datagram protocol (UDP), Internet protocol (IP)
    • IEEE 802.1p
    • TCP segmentation/large send offload
    • Interrupt moderation
  • Controller-processor: Intel 82571GB
  • Data rate(s) supported per port: 10, 100, and 1000 Mbps
  • Bus type: PCI-Express 1.0a
  • Bus width: x4 lane PCI-Express, operable in x4, x8, x16 slots
  • Bus speed (x4, encoded rate): 10 Gbps uni-directional; 20 Gbps bi-directional
  • EEPROM-SPI and single EEPROM support
  • Interrupt levels: INTA, INTB, INTC, INTD
  • IEEE support: 802.3ab
  • LEDs: 4 (1/port, link and speed) solid and blinking
  • Typical power consumption: 4.95W (3.3 V @ 1.5 A)
  • Hardware certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
  • Dimensions (WxLxH): 0.75 x 6.6 x 2.35 inch / 1.91 x 16.76 x 5.97 cm
