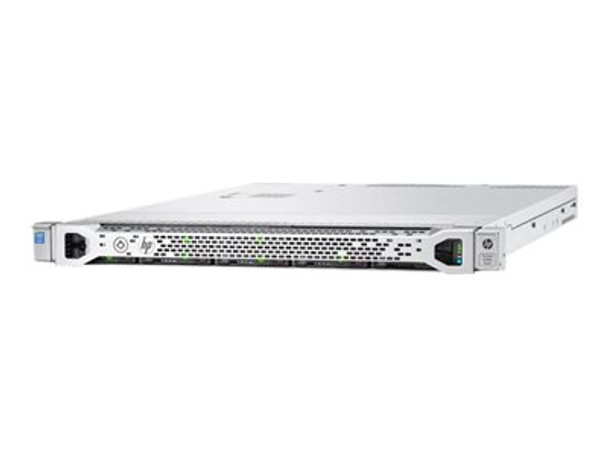

755261-B21 | HPE ProLiant DL360 Gen9 Entry Servers

HPE ProLiant DL360 Gen9 Entry Servers - 755261-B21

(No reviews yet) Write a Review

Brand:

HPE

Part Number #

755261-B21

Availability:

In Stock

$2,554.81 $2,129.01

- You save $425.80

Description
Read Before Ordering

Description

Main Specifications

Product Description	HPE ProLiant DL360 Gen9 Entry - Xeon E5-2603V3 1.6 GHz - 8 GB - 0 GB
Type	Server - rack-mountable
Height (Rack Units)	1U
Localization	Worldwide
Server Scalability	2-way
Processor	1 x Intel Xeon E5-2603V3 / 1.6 GHz ( 6-core )
Cache Memory	15 MB
Cache Per Processor	15 MB
RAM	8 GB (installed) / 384 GB (max) - DDR4 SDRAM - Advanced ECC - 1600 MHz - PC4-17000
Storage Controller	RAID ( SATA 6Gb/s / SAS 12Gb/s ) - PCIe 3.0 x8 ( HP H240ar Smart Host Bus Adapter )
Server Storage Bays	Hot-swap 2.5"
Hard Drive	No HDD
Graphics Controller	Matrox G200
Networking	GigE
Power	AC 120/230 V ( 50/60 Hz )
Power Redundancy	Optional
Dimensions (WxDxH)	17.1 in x 27.5 in x 1.7 in
Weight	27.01 lbs
Manufacturer Warranty	3 years warranty - on-site

Extended Specifications

General

Type	Server
Recommended Use	Small business, corporate business
Product Form Factor	Rack-mountable - 1U
Embedded Security	Trusted Platform Module (TPM 1.2) Security Chip
Server Scalability	2-way
Front Accessible Bays Qty	1
Hot-Swap Bays Qty	8
Localization	Worldwide

Processor / Chipset

CPU	Intel Xeon E5-2603V3 / 1.6 GHz
Number of Cores	6-core
CPU Qty	1
Max CPU Qty	2
CPU Upgradability	Upgradable

Cache Memory

Installed Size	15 MB
Cache Per Processor	15 MB

RAM

Installed Size	8 GB / 384 GB (max)
Technology	DDR4 SDRAM - Advanced ECC
Memory Speed	1600 MHz
Memory Specification Compliance	PC4-17000
Form Factor	DIMM 288-pin
Features	Registered, Online Spare Memory, quad channel memory architecture, HP SmartMemory
Configuration Features	1 x 8 GB
RAM Supported	PC4-17000 - 768 GB - Load-Reduced ¦ PC4-17000 - 384 GB - registered

Hard Drive

Type

No HDD

Storage Controller

Type	1 x RAID - plug-in card - PCIe 3.0 x8
Controller Interface Type	SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name	HP H240ar Smart Host Bus Adapter
Channel Qty	8
RAID Level	RAID 0, RAID 1, RAID 5

Monitor

Monitor Type

None.

Graphics Controller

Type	Integrated
Graphics Processor	Matrox G200
Video Interfaces	VGA

Networking

Type	Integrated
Ethernet Ports	4 x Gigabit Ethernet
Ethernet Controller	HP 331i
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller	Integrated Lights-Out 4
Features	Wake on LAN (WoL), PXE support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion / Connectivity

Bays	1 (total) / 1 (free) x external ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots	24 (total) / 23 (free) x DIMM 288-pin ¦ 2 (total) / 1 (free) x CPU ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces	1 x VGA ¦ 1 x serial ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HP iLO ¦ 5 x USB 3.0 ( 1 front, 2 rear, 2 internal )

Miscellaneous

Included Accessories	HP Easy Install Rail kit
Features	Administrator password, power-on password, keyboard password, serial port I/O control, QuickLock, UEFI BIOS
Compliant Standards	ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438

Power

Device Type	Power supply - hot-plug
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Installed Qty	1
Max Supported Qty	2
Nominal Voltage	AC 120/230 V ( 50/60 Hz )
Power Provided	500 Watt
80 PLUS Certification	80 PLUS Platinum

Operating System / Software

OS Certified

SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris, Citrix XenServer, Canonical Ubuntu

Manufacturer Warranty

Service & Support	3 years warranty
Service & Support Details	Limited warranty - parts and labor - 3 years - on-site - response time: next business day

Dimensions & Weight

Width	17.1 in
Depth	27.5 in
Height	1.7 in
Weight	27.01 lbs

Environmental Parameters

Min Operating Temperature	50 °F
Max Operating Temperature	95 °F
Humidity Range Operating	8 - 90% (non-condensing)
