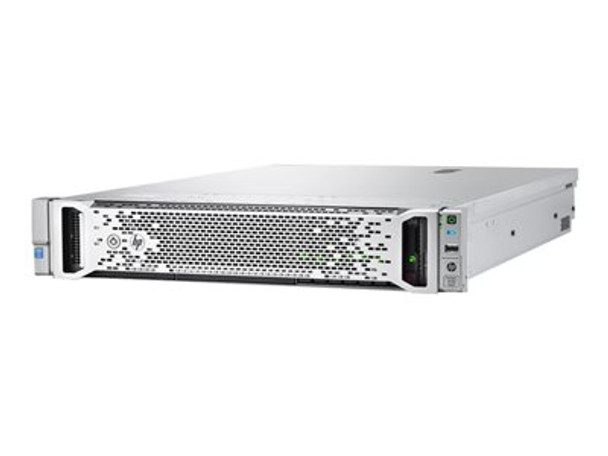

784101-S01 | HPE ProLiant DL180 Gen9 Servers

HPE ProLiant DL180 Gen9 Servers - 784101-S01

(No reviews yet) Write a Review

Brand:

HPE

Part Number #

784101-S01

Availability:

In Stock

$2,227.02 $1,855.85

- You save $371.17

Description
Read Before Ordering

Description

Main Specifications

Product Description	HPE ProLiant DL180 Gen9 - Xeon E5-2620V3 2.4 GHz - 8 GB - 0 GB
Type	Server - rack-mountable
Height (Rack Units)	2U
Server Scalability	2-way
Processor	1 x Intel Xeon E5-2620V3 / 2.4 GHz ( 3.2 GHz ) ( 6-core )
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory	15 MB L3 cache
Cache Per Processor	15 MB
RAM	8 GB (installed) / 256 GB (max) - DDR4 SDRAM - Advanced ECC - 1866 MHz - PC4-17000
Storage Controller	RAID ( SATA 6Gb/s / SAS 12Gb/s ) - PCIe 3.0 x8 ( Smart Array P440 with 4GB FBWC )
Server Storage Bays	Hot-swap 2.5"
Hard Drive	No HDD
Graphics Controller	Matrox G200eH2
Networking	GigE
Power	AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH)	17.5 in x 23.9 in x 3.4 in
Weight	36.57 lbs
Manufacturer Selling Program	HP Smart Buy
Manufacturer Warranty	3 years warranty - on-site ( 1st year only )

Extended Specifications

General

Type	Server
Product Form Factor	Rack-mountable - 2U
Embedded Security	Trusted Platform Module (TPM 1.2) Security Chip
Server Scalability	2-way
Front Accessible Bays Qty	1
Hot-Swap Bays Qty	8

Processor / Chipset

CPU	Intel Xeon E5-2620V3 / 2.4 GHz
Max Turbo Speed	3.2 GHz
Number of Cores	6-core
CPU Qty	1
Max CPU Qty	2
CPU Upgradability	Upgradable
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology 2
Chipset Type	Intel C610

Cache Memory

Installed Size	L3 cache - 15 MB
Cache Per Processor	15 MB

RAM

Installed Size	8 GB / 256 GB (max)
Technology	DDR4 SDRAM - Advanced ECC
Memory Speed	1866 MHz
Memory Specification Compliance	PC4-17000
Form Factor	DIMM 288-pin
Features	Registered, HP SmartMemory
Configuration Features	1 x 8 GB
RAM Supported	PC4-17000 - 256 GB - registered - ECC ¦ PC4-17000 - 512 GB - Load-Reduced - ECC

Hard Drive

Type

No HDD

Storage Controller

Type	1 x RAID - plug-in card - PCIe 3.0 x8
Controller Interface Type	SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name	Smart Array P440 with 4GB FBWC
Channel Qty	8
RAID Level	RAID 0, RAID 1, RAID 5

Monitor

Monitor Type

None.

Graphics Controller

Type	Integrated
Graphics Processor	Matrox G200eH2
Video Interfaces	VGA

Networking

Type	Integrated
Interface (Bus) Type	PCI Express 2.0 x2
Ethernet Ports	2 x Gigabit Ethernet
Ethernet Controller	HP NC361i
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller	Integrated Lights-Out 4
Features	Wake on LAN (WoL), PXE support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Expansion / Connectivity

Bays	1 (total) / 1 (free) x external ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots	2 (total) / 1 (free) x CPU ¦ 16 (total) / 15 (free) x DIMM 288-pin ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - full-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces	2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HP iLO - RJ-45 ¦ 1 x VGA ¦ 1 x USB 2.0 ( 1 in front ) ¦ 3 x USB 3.0 ( 2 rear, 1 internal )

Miscellaneous

Included Accessories	HP Easy Install Rails
Features	Administrator password, power-on password, serial port I/O control, UEFI BIOS
Compliant Standards	ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 4943, GB 9254, CNS 14336, CNS 13438
Manufacturer Selling Program	HP Smart Buy

Power

Device Type	Power supply
Nominal Voltage	AC 120/230 V ( 50/60 Hz )
Power Provided	900 Watt

Operating System / Software

OS Certified

SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris

Manufacturer Warranty

Service & Support	3 years warranty
Service & Support Details	Limited warranty - parts - 3 years - response time: next business day ¦ Limited warranty - labor - 1 year - on-site - response time: next business day

Dimensions & Weight

Width	17.5 in
Depth	23.9 in
Height	3.4 in
Weight	36.57 lbs

Environmental Parameters

Min Operating Temperature	50 °F
Max Operating Temperature	95 °F
Humidity Range Operating	8 - 90% (non-condensing)
