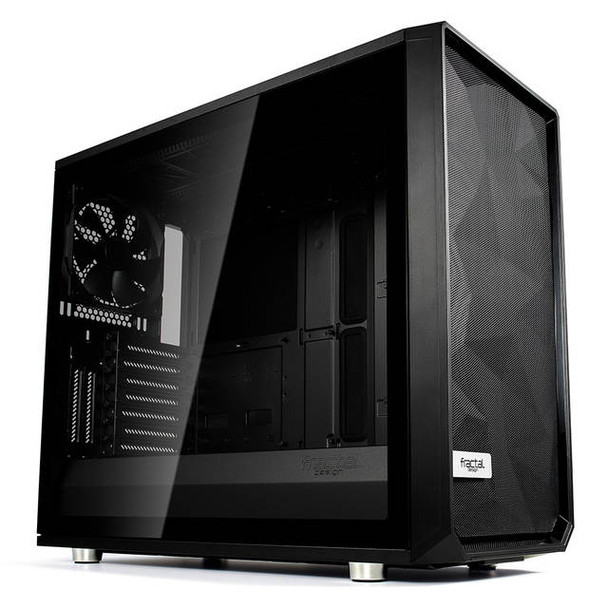

Fractal Design Meshify S2 - Dark TG No Power Supply ATX Mid Tower
(No reviews yet)
Write a Review
- Brand:
- Fractal Design
- Part Number #
- FD-CA-MESH-S2-BKO-TGD
- Condition:
- Refurbished
- Availability:
- IN STOCK - COMES WITH 30 DAYS WARRANTY
$579.42
$482.85
- You save $96.57
Description
Specifications
- Mfr Part Number: FD-CA-MESH-S2-BKO-TGD
- Features:
- Modular high-airflow open layout design
- Stealth inspired angular mesh ventilation
- Seamless, bolt-free tempered glass (TG versions only)
- Push-to-lock latching on both side panels for easy access
- USB 3.1 Gen 2 Type-C with fast charge support and speeds up to 10Gbps
- Built for advanced liquid cooling with adjustable reservoir brackets, pre-drilled pump mounts, and an innovative removable top bracket with dedicated fill port
- Nine fan positions with clear airflow paths for massive cooling capacity
- Support for radiators up to 420 mm in the top, 360 mm in front, and 280 mm in the base
- Full-length ventilated PSU shroud with removable front cover and alternate SSD mounts
- Vertical 2.5 slot GPU support using the Flex VRC-25 vertical PCIE riser (sold separately)
- Concealed drive mounts for two SSDs and three HDDs with vibration dampened enclosures
- Three Dynamic X2 fans pre-installed as dual intakes and rear exhaust for balanced airflow
- Nexus+ Smart Hub allows motherboard control of up to three PWM devices and six case fans
- Easy to clean front, top, and base filters with full PSU coverage and convenient front access
- Case Type: ATX Mid Tower
- Material: Steel, Tempered Glass
- M/B Type: EATX (up to 285 mm wide), ATX, mATX, ITX
- Drive Bays:
- Internal Bays: 3x 3.5" or 2.5", 2x Dedicated 2.5" (4 positions total)
- Internal Bays: 3x 3.5" or 2.5", 2x Dedicated 2.5" (4 positions total)
- Expansion Slots: 7 + 2 vertical
- Cooling System:
- Top: 3x 120/140mm Fan Vents (Fans not included)
- Front: 3x 120/140mm Fan Vents (2x Dynamic X2 GP-14 Fan is included)
- Rear: 1x 120/140mm Fan Vent (1x Dynamic X2 GP-14 Fan is included)
- Bottom: 2x 120/140mm Fan Vents (Fans not included)
- Dust filters: Bottom fan + PSU, Front fans Top panel
- Radiator:
- Front: 120/240/360mm, 140/280mm
- Top: 120/240/360 mm, 140/280/420 mm (max 35 mm motherboard component height)
- Rear: 120mm
- Bottom: 120/240 mm, 140/280 mm
- Side Windows: Yes
- Front I/O Panel: 1x USB 3.1 Gen 2 Port (Type-C), 2x USB 3.0 Ports, Audio I/O
- Maximum Compatibility:
- VGA Card Length: 440 mm (w/ front fans mounted)
- CPU Cooler Height: 185 mm
- Cable Routing Space: 23 mm
- ​Power Supply: None, 300mm Max ATX PSU Length
- Dimension (WxLxH): 233.0 x 538.0 x 465.0 mm; 233.0 x 530.0 x 448.0 mm (w/o feet/protrusions/screws)
- Weight: 10.04 kg
