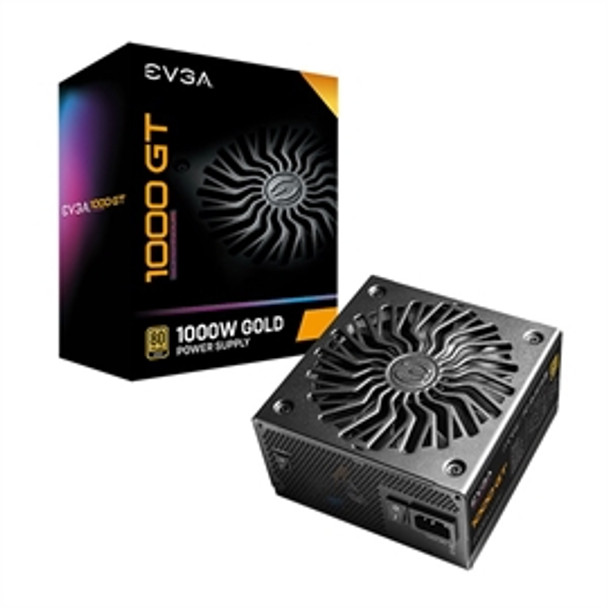

EVGA Power Supply 220-GT-1000-X1 SuperNOVA 1000 GT 1000W 80+ GOLD Fully Modular
(No reviews yet)
Write a Review
- Brand:
- EVGA
- Part Number #
- AS256953
- UPC:
- 843368071370
$179.35
Description
REFINEMENT IN PERFORMANCE AND DESIGN
The EVGA SuperNOVA GT line is your next choice in a fully modular, compact 150mm length & width power supply with 100% Japanese capacitors.
80 PLUS GOLD EFFICIENCY
80 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.
FLUID DYNAMIC BEARING
The EVGA SuperNOVA GT uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.
SINGLE +12V OUTPUT
Provides a stable output for compatibility with the latest hardware.
FULLY MODULAR DESIGN
Choose the cables you need to make cable management simple and clean.
AUTO ECO MODE
Fan RPM adapts to the PSU temperature. The fan will shut off in a low temperature/low load environment, resulting in reduced noise. CABLE LENGTH
ATX Cable
1x 600mm (m)
EPS Cable
2x 700mm (m)
PCIe Cable
2x 700mm (m), 3x 700mm, 850mm (m)
SATA Cable
4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable
1x 550mm, 650mm, 750mm (m)
Floppy Adapter
1x Molex to FDD Adapter
AC Power
1x 1500mm (m)
Modular Cable Type
Full
Molex to FDD
1x
CONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
2x 8pin (4+4)
PCIe
8x 8pin(6+2)
SATA
12x
Four-Pin Peripheral
4x
Floppy
1x
POWER SPECS
AC Input
100-240V, 12-6A, 60/50Hz
Rail
+3.3V / +5V / +12V / +5Vsb / -12V
Max Output
25A / 25A / 83.3A / 3A/ 0.5A
130W/ 130W / 1000W / 15W /6W
Total
1000W
ADDITIONAL DETAILS
Operating Temperature
0O to 50O C
Japanese Capacitors
100%
ECO Mode
Yes
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
135mm Fluid Dynamic Bearing
Item Dimension (L"xW"xH")
12 x 5 x 9
Weight
8.8 lbs
Warranty Information
10 years
View AllClose
The EVGA SuperNOVA GT line is your next choice in a fully modular, compact 150mm length & width power supply with 100% Japanese capacitors.
80 PLUS GOLD EFFICIENCY
80 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.
FLUID DYNAMIC BEARING
The EVGA SuperNOVA GT uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.
SINGLE +12V OUTPUT
Provides a stable output for compatibility with the latest hardware.
FULLY MODULAR DESIGN
Choose the cables you need to make cable management simple and clean.
AUTO ECO MODE
Fan RPM adapts to the PSU temperature. The fan will shut off in a low temperature/low load environment, resulting in reduced noise. CABLE LENGTH
ATX Cable
1x 600mm (m)
EPS Cable
2x 700mm (m)
PCIe Cable
2x 700mm (m), 3x 700mm, 850mm (m)
SATA Cable
4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable
1x 550mm, 650mm, 750mm (m)
Floppy Adapter
1x Molex to FDD Adapter
AC Power
1x 1500mm (m)
Modular Cable Type
Full
Molex to FDD
1x
CONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
2x 8pin (4+4)
PCIe
8x 8pin(6+2)
SATA
12x
Four-Pin Peripheral
4x
Floppy
1x
POWER SPECS
AC Input
100-240V, 12-6A, 60/50Hz
Rail
+3.3V / +5V / +12V / +5Vsb / -12V
Max Output
25A / 25A / 83.3A / 3A/ 0.5A
130W/ 130W / 1000W / 15W /6W
Total
1000W
ADDITIONAL DETAILS
Operating Temperature
0O to 50O C
Japanese Capacitors
100%
ECO Mode
Yes
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
135mm Fluid Dynamic Bearing
Item Dimension (L"xW"xH")
12 x 5 x 9
Weight
8.8 lbs
Warranty Information
10 years
