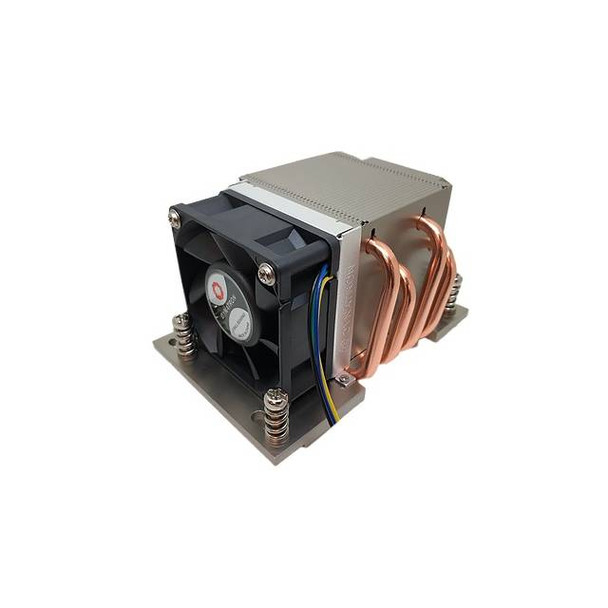

Dynatron A26 2U&Up Server CPU Fan For AMD EPYC Processor Socket SP3
(No reviews yet)
Write a Review
- Brand:
- Dynatron
- Part Number #
- A26
- Availability:
- In Stock
$225.00
$188.00
- You save $37.00
Description
Specifications
- Mfr Part Number: A26
- CPU Application: AMD Socket SP3 for 2U Server and up
- Material: Aluminum Heatsink with Heatpipe Embedded
- Fan Dimension: 60.0 x 60.0 x 25.0 mm
- Speed:
- At Duty Cycle 20%: 1600 ± 200 RPM
- At Duty Cycle 50%: 4000 ± 10% RPM
- At Duty Cycle 100%: 8000 ± 10% RPM
- Rated Voltage: 12V
- Bearing: Ball Type, Double
- Power:
- At Duty Cycle 20%: 1.20 W
- At Duty Cycle 50%: 2.28 W
- At Duty Cycle 100%: 7.20 W
- Air Flow:
- At Duty Cycle 20%: 8.85 CFM
- At Duty Cycle 50%: 21.88 CFM
- At Duty Cycle 100%: 43.75 CFM
- Noise Level:
- At Duty Cycle 20%: 18.0 dBA
- At Duty Cycle 50%: 37.9 dBA
- At Duty Cycle 100%: 53.0 dBA
- Air Pressure:
- At Duty Cycle 20%: 0.76 mm-H2O
- At Duty Cycle 50%: 4.76 mm-H2O
- At Duty Cycle 100%: 19.04 mm-H2O
- Lead Wire Pin Out:
- Pin1- (-)
- Pin2- (+)
- Pin3- (Techometer/Signal output)
- Pin4- (PWM)
- Dimensions: 119.0 x 79.0 x 65.0 mm
- Weight: 450.0 g
- RoHS Compliant
