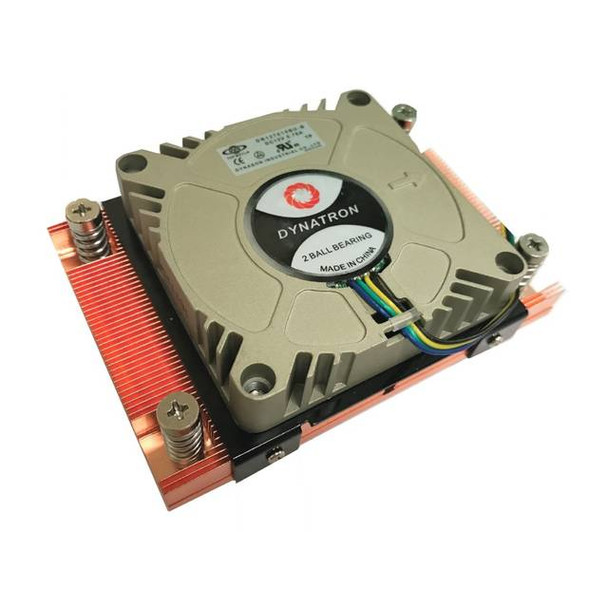

Dynatron A18 1U Server CPU Fan For AMD Socket AM4
(No reviews yet)
Write a Review
- Brand:
- Dynatron
- Part Number #
- A18
- Availability:
- In Stock
$225.00
$188.00
- You save $37.00
Description
Specifications
- Mfr Part Number: A18
- CPU Application: AMD Socket AM4
- Solution: 1U Server
- Material: Copper 1100 with Skived Fins
- Fan:
- Speed:
- At Duty Cycle 20%: 1100 RPM ± 200 RPM
- At Duty Cycle 50%: 2600 RPM ± 10% RPM
- At Duty Cycle 100%: 6000 RPM ± 10% RPM
- Power:
- At Duty Cycle 20%: 0.6 W
- At Duty Cycle 50%: 1.2 W
- At Duty Cycle 100%: 8.8 W
- Bearing: 2 Ball Bearing
- Rated Voltage: 12V
- Air Flow:
- At Duty Cycle 20%: 2.5 CFM
- At Duty Cycle 50%: 5.8 CFM
- At Duty Cycle 100%: 14.3 CFM
- Noise Level:
- At Duty Cycle 20%: 19.1 dBA
- At Duty Cycle 50%: 34.2 dBA
- At Duty Cycle 100%: 53.8 dBA
- Air Pressure:
- At Duty Cycle 20%: 1.25 mm-H2O
- At Duty Cycle 50%: 7.0 mm-H2O
- At Duty Cycle 100%: 50.46 mm-H2O
- Lead Wire Pin Out:
- Pin1- (-)
- Pin2- (+)
- Pin3- (Techometer/Signal output)
- Pin4- (PWM)
- Speed:
- Dimensions:
- Fan: 70.0 x 70.0 x 15.0 mm
- Overall: 106.0 x 76.0 x 27.5 mm
- Weight: 450.0 ± 5.0 g
- RoHS Compliant
