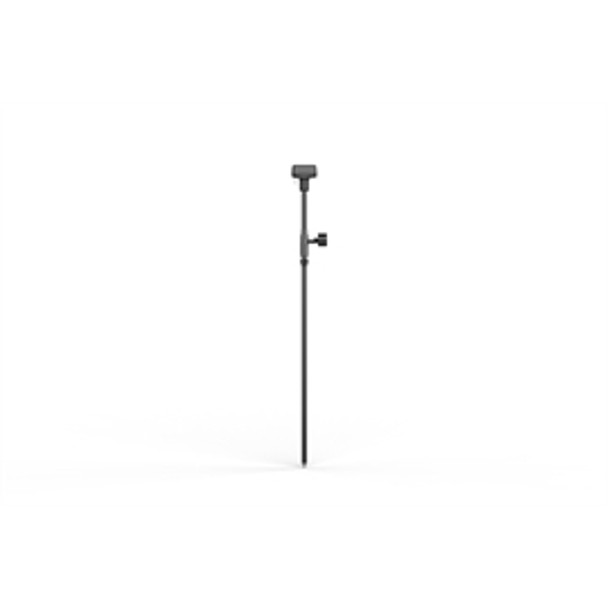

DJI Accessory CP.EN.00000304.01 D-RTK 2 High Precision GNSS Mobile Station

Gain improved relative accuracy with centimeter-level precision positioning data using the D-RTK 2 High Precision GNSS Mobile Station, which supports all major global satellite navigation systems and provides real-time differential corrections.


Highlights

Supports: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B

Connect multiple drones to conduct coordinated operations

IP65 Ingress Protection


In The Box

D-RTK 2 Body × 1

Extension Rod × 1

Charging Hub × 1

AC Power Adapter × 1

Intelligent Battery (WB37) × 2

Battery Cover × 1

AC Power Cable × 1

USB-C Cable × 1

USB-C OTG Cable × 1

Hex Key × 1 Simultaneously receives:
GPS: L1 C/A, L2, L5, BEIDOU: B1, B2, B3, GLONASS: F1, F2, Galileo: E1, E5A, E5B
Positioning Accuracy:
Single Point
Horizontal:
1.5 m(RMS)
Vertical:
3.0 m(RMS)
RTK
Horizontal:
1 cm+ 1 ppm(RMS)
Vertical:
2 cm+ 1 ppm(RMS)
1 ppm:
For every 1 km increase in distance, the accuracy will be 1 mm less.
Ingress Protection Rating:
IP65
Operating Temperature:
-20^o to 55^o C (4^o to 131^o F )
Compatibility
Matrice 300 RTK
Phantom 4 RTK
Item Dimension (L inchxW inchxH inch)
11 x 9 x 7

Weight
12.13 lb

Warranty Information
6 months
