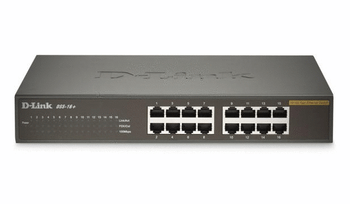

D-Link Switch DSS-16+ Desktop Switch 10/100 16-Port Full Duplex
(No reviews yet)
Write a Review
- Brand:
- D-Link
- Part Number #
- AS6238
- UPC:
- 790069218637
$54.64
Description
The D-Link DSS-16 is a powerful desktop Dual Speed 16-port 10/100Mb Ethernet/Fast Ethernet NWay auto-negotiating Switch. Designed to bring switching to the small office and small business, the DSS-16 delivers high speed switching capabilities at the lowest cost per port in the industry. It functionally eliminates unnecessary traffic and relieves data congestion by delivering dedicated bandwidth for each of the sixteen ports. An individual port can connect to either an Ethernet or Fast Ethernet device. NWay auto-negotiation automatically determines the transmission speed of the attached device on each port. The DSS-16 provides dynamic buffer allocation that employs network-load balancing for faster data handling. The uplink interface connection enables easy expansion. The DSS-16 uses fast store and forward architecture to ensure low latency and high data integrity. It supports stacking through two MDI-II uplink shared ports.
Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3 Nway Auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.1p Qos Prioritization
Features
- Number of Ports: Sixteen 10/100BASE-TX
- MAC Address Table: 8k
- Switch Fabric: 3.2Gbps
- Buffer Memory:160KB
- Transmission Method: Store-and-forward
Network Data Transfer Rate
- Ethernet: 10Mbps (Half-duplex)
- Ethernet: 20Mbps (Full-duplex)
- Fast Ethernet: 100Mbps (Half-duplex)
- Fast Ethernet: 200Mbps (Full-duplex)
Interface Options: RJ-45: 10BASE-T, 100BASE-TX Universal UTP Cable Recognition for Straight-through or Crossover cables
Certifications: FCC Class A
Led
View AllClose
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3 Nway Auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.1p Qos Prioritization
Features
- Number of Ports: Sixteen 10/100BASE-TX
- MAC Address Table: 8k
- Switch Fabric: 3.2Gbps
- Buffer Memory:160KB
- Transmission Method: Store-and-forward
Network Data Transfer Rate
- Ethernet: 10Mbps (Half-duplex)
- Ethernet: 20Mbps (Full-duplex)
- Fast Ethernet: 100Mbps (Half-duplex)
- Fast Ethernet: 200Mbps (Full-duplex)
Interface Options: RJ-45: 10BASE-T, 100BASE-TX Universal UTP Cable Recognition for Straight-through or Crossover cables
Certifications: FCC Class A
Led
