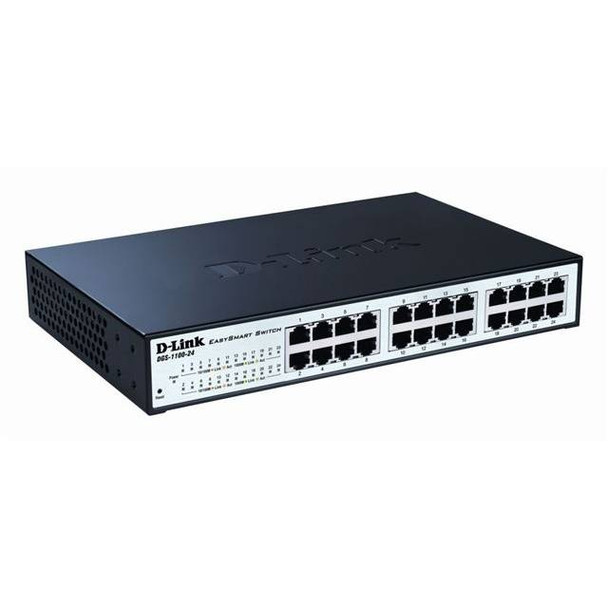

D-Link DGS-1100-24 Easy Smart 24-Ports Gigabit Switch
(No reviews yet)
Write a Review
- Brand:
- D-Link
- Part Number #
- DGS-1100-24
- Availability:
- In Stock
$225.00
$188.00
- You save $37.00
Description
Specifications
View AllClose
- Mfr Part Number: DGS-1100-24
- Features:
- Basic managed functions for small networks
- 11-inch metal case. Comes with adapters to install in 19-inch racks
- VLAN support for traffic segmentation
- AutoSurveillance VLAN for easy integration with IP-based surveillance systems
- Loopback detection and broadcast storm control to avoid network downtime
- QoS (Quality of Service) and bandwidth control to ensure smooth operation
- Cable diagnostics function to help to troubleshoot wiring problems
- Configurable through a web interface or SmartConsole utility
- 802.3az Energy Efficient Ethernet (EEE) compliant
- Improved resiliency, longer MTBF (Mean Time Between Failures)
- Fanless, silent operation to fit in any environment
- Ports: 24x 10/100/1000Mbps Ports
- Port Standards & Functions:
- IEEE 802.3 10/100 Mbps Ethernet
- IEEE 802.3u 1000Mbps Gigabit Ethernet
- Auto-negotiation
- Auto MDI/ MDIX
- IEEE 802.3x Flow Control
- Performance:
- Switching capacity: 48 Gbps
- Max. forwarding rate: 35.71 Mpps
- MAC table: 8K entries
- Packet buffer: 3.5 Mbits
- Flash Memory: 2 MB
- L2 Features:
- MAC Address Table: 8K
- Flow Control: 802.3x Flow Control; HOL Blocking Prevention
- IGMP Snooping: IGMP v1/v2 Snooping; Supports 32 Groups
- Static Trunk: 8 groups, 2-4 ports per group
- Loopback Detection: Yes
- Port Mirroring: One-to-One, Many-to-One
- Cable Diagnostics: Yes
- Statistics: Tx Ok; Tx Error; Rx Ok; Rx Error
- VLAN:
- 802.1Q
- VLAN Group: Supports 32 static VLAN groups, max 4094 VIDs
- Auto Surveillance VLAN
- QoS:
- 802.1p Quality of Service
- 4 Queues per port
- Queue Handling: Strict, Weighted Round Robin (WRR)
- CoS based on: 802.1p Priority Queues, DSCP
- Bandwidth Control: Port-based (Ingress/Egress, min. granularity 64 Kb/s)
- Security:
- Static MAC (Max. 128 entries)
- Broadcast/Multicast/Unknown Unicast Storm Control Management
- Web-based GUI (Supports IPv4)
- SmartConsole Utility
- Management:
- Web-based GUI
- SmartConsole Utility
- Password control
- Configuration backup/restore
- Firmware upgradeable
- AC Input: 100 ~ 240V AC, 50/60 internal universal power supply
- Power consumption: 7.68W
- Form factor: 11'' desktop enclosure, 1U height
- Dimensions: 280.0 x 180.0 x 44.0 mm
- Weight: 1.6 kg
Read Before Orderings
- Product images are for illustrative purposes only and the final product delivered may vary from the one shown above.
- In some cases, a product sold may arrive in different packaging than its original retail box. For bulk orders that are packaged together, product manuals or CDs may not always be available for each item.
- At checkout, the shipping cost is a general estimate which is subject to change depending on size/weight/quantity of ordered goods.
- Orders that contain end of life (EOL) products that are no longer in production may be replaced by a compatible product with the same FRU number offering same functionality.
- Refurbished printers may not have full ink cartridges or laser toners.
- Once an order is processed at our warehouse, it cannot be cancelled. A returned order will likely incur a restocking fee. See RMA page for details about restocking fees.
- Please note if you are concerned about any of the above conditions or have any question at all, we highly recommend that you contact us on sales@ithardwarehub.com or call 425-615-6227 before placing an order.
