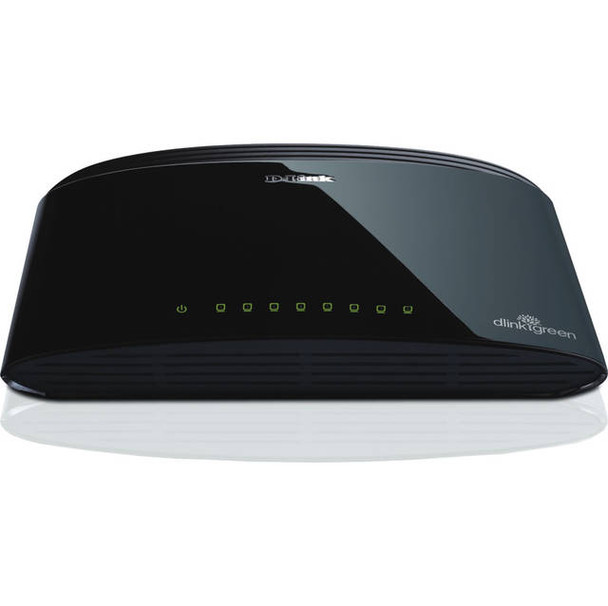

D-Link DGS-1008G 8-Port Gigabit Desktop Switch
(No reviews yet)
Write a Review
- Brand:
- D-Link
- Part Number #
- DGS-1008G
- Availability:
- In Stock
$210.00
$175.00
- You save $35.00
Description
Specifications
View AllClose
- Mfr Part Number: DGS-1008G
- Features:
- Built-in D-Link Green Technology
- Inexpensive Gigabit solution for Home/SOHO
- 8x 10/100/1000 Mbps Gigabit ports
- 16 Gbps switching fabric
- Auto MDI/MDIX crossover for all ports
- Secure store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- IEEE 802.3x Flow Control
- Supports 9,000 Byte Jumbo Frames
- Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
- Supports Cable Diagnostics Function
- RoHS compliant
- Plug-and-play installation
- Standards:
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
- ANSI/IEEE 802.3 Nway autonegotiation
- IEEE 802.3x Flow control
- IEEE 802.1p QoS
- Protocol: CSMA/CD
- Data Transfer Rates:
- Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex)
- Gigabit Ethernet: 2000 Mbps (full duplex)
- Topology: Star
- Media Interface Exchange: Auto MDI/MDIX adjustment for all ports
- Network Cables:
- 10BASE-T: UTP CAT 3/4/5/5e (100 m max.); EIA/TIA-586 100-ohm STP (100 m max.)
- 100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max.); EIA/TIA-568 100-ohm STP (100 m max.)
- Led Indicators: Per port - Link/Activity/Speed; Per device - Power
- Transmission Method: Store-and-forward
- Mac Address Table: 4K entries per device
- Mac Address Learning: Automatic update
- Packet Filtering/Forwarding Rates:
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
- Ram Buffer: 192 KBytes per device
- DC Input: External 5V/1.2A power adapter
- Power Consumption:
- Power on (Standby): DC input - 0.5 watts; AC input - 0.8 watts
- Maximum: DC input - 4.2 watts; AC input - 5.8 watts
- Heat Dissipation: Power on (Standby) - AC input 2.73 BTU/h; Maximum - AC input 19.79 BTU/h
- MTBF: 1,150,498 hours
- Certifications: FCC class B, ICES-003 class B, CE class B, C-Tick class B, VCCI class B, cUL, CB
- Minimum System Requirements:
- Devices Supporting 802.3 Ethernet, 802.3u fast Ethernet, or 802.3ab Gigabit Ethernet
- CAT5 Ethernet Cable
- Network Interface Card for each computer
- CD-ROM Drive to view Product Documentation
- Dimensions(WxDxH): 6.5 x 4.5 x 1.4 inch / 164.5 x 112.4 x 35.0 mm
