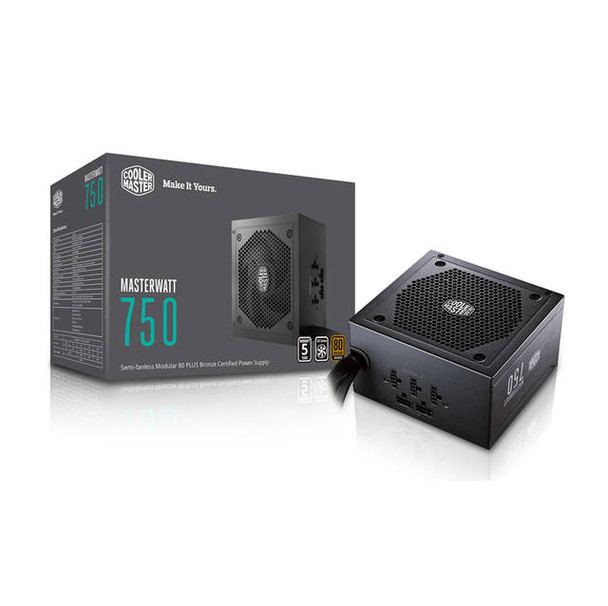

Cooler Master Masterwatt MPX-7501-AMAAB-US 750W 80 PLUS Bronze ATX 12V V2.4 Power Supply

(No reviews yet) Write a Review

Brand:

Cooler Master

Part Number #

MPX-7501-AMAAB-US

Condition:

Refurbished

Availability:

IN STOCK - COMES WITH 30 DAYS WARRANTY

$225.00 $188.00

- You save $37.00

Description
Read Before Ordering

Description

Specifications

Mfr Part Number:Â MPX-7501-AMAAB-US
Features:
- 80 PLUS Bronze Certified - The 80 PLUS Bronze certification guarantees that MasterWatt delivers an average efficiency of 85%
- Durable LDB Bearing - Cooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling
- Semi-Fanless up to 15% load - MasterWatt Operates at 0dB under 15% load. Experience noise-free basic computing
- Dual Forward and DC-to-DC Circuit Design - The Dual Forward and DC-to-DC circuit design offers reliability and stability. This is especially significant in +3.3V and +5V outputs
- More Conductive PCI-e Cables - The MasterWatt uses 16AWG cables for PCI-e cables. Less resistance and better efficiency,providing you a safer user environment
Type: ATX 12V V2.4
Output Capacity:Â 750W
Input
- Voltage: 100 - 240V AC
- Current: 10 - 5A
- Frequency: 50 - 60Hz
PFC: Active PFC
Power Good Signal: 100 - 500ms
Hold Up Time: 16ms at 80% load
MTBF: >100,000 Hours
Fan: 120mm LDB Fan
Efficiency: 85% Typically Load
Protection: OCP / OVP / UVP / OPP / OTP / SCP
Output: +3.3V @ 22A, +5V @ 22A, +12V @ 62.5A, -12V @ 0.3A, +5sb @ 3A
Connectors:Â 1x 24pin Motherboard Connector, 1x 4+4pin CPU 12V Connector, 4x 6+2pin PCI-Express Connectors, 9x SATA Connectors, 3x 4pin Peripheral Connectors, 1x 4pin FDD Cable Connector
Regulatory: CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
Dimensions (BxLxH): 150.0 x 140.0 x 86.0 mm
