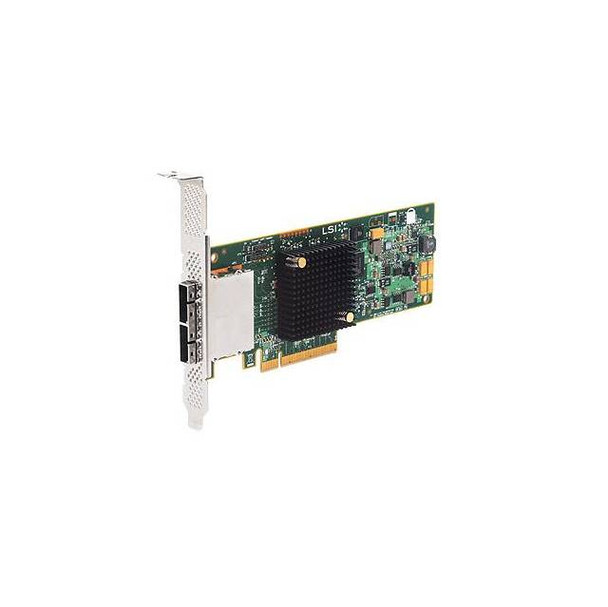

Broadcom LSI SAS 9207-8e 8-port 6Gb/s SATA+SAS PCI-Express 3.0 Low Profile Host Bus Adapter, Single

(No reviews yet) Write a Review

Brand:

LSI

Part Number #

LSI00300 (9207-8E )

Availability:

In Stock

$734.00 $611.67

- You save $122.33

Description

Specifications

Mfr Part Number: LSI00300 (9207-8E )
Features:
- Eight external 6Gb/s SAS+SATA ports
- Two x4 external SFF8088 Mini-SAS connectors
- LSISAS2308 6Gb/s SAS+SATA Controller
- Supports up to 1024 SAS or SATA end devices
- Supports SSDs, HDDs, and tape devices
- Fusion-MPT 2.0 architecture can achieve more than 700,000 I/Os per second
- Supports major operating systems
- Mac OS support for additional integration flexibility
Connectors: 2x Mini-SAS SFF8088 External Connectors
Device Support: 1024 Non-RAID devices
Host Bus Type: PCI-Express 3.0 x8
PCI Data Burst Transfer Rates: Half Duplex; X8, PCIe 8000 MB/s
Storage Connectivity/Data Transfer Rates: 8 ports; 6Gb/s SAS 2.1 compliant
SAS Bandwidth: Half Duplex; 600 MB/s per lane
Port Configurations: 8 ea, x1 ports (individual drives) or 2 ea, x4 wide ports
I/O Controller: LSISAS2308, Fusion MPT 2.0
Brackets: Full height and low profile
Cable Support: Active Copper
Operating Voltage: +12V +/-8%; 3.3V +/-8%
PCI Power: 9.8W typical, Airflow 200 LFM
MTBF: > 2,000,000 Hours
OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
Regulatory Certifications: EMC - Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety - EN60950; RoHS; WEEE
Dimensions: Low Profile, 2.7 x 6.6 inch
Package Contents: Host Bus Adapter, Documentation CD
RoHS Compliant
