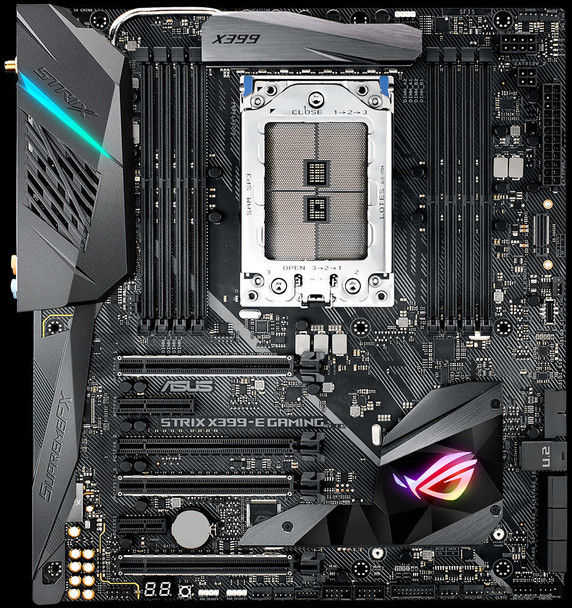

ASUS ROG Strix X399-E Gaming AMD X399 Socket TR4 ATX motherboard

(No reviews yet) Write a Review
Brand:
ASUS
Part Number #
90MB0V70-M0AAY0
Condition:
Refurbished
Availability:
IN STOCK - COMES WITH 30 DAYS WARRANTY
$1,521.40 $1,267.84
- You save $253.56
  • ASUS ROG Strix X399-E Gaming AMD X399 Socket TR4 ATX motherboard
Don't like the price? Make an offer!
Get bulk pricing

Description

Memory
Number of memory slots8
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Memory channelsQuad
ECCYes
Non-ECCYes
Supported memory clock speeds2133,2400,2666,2800,3200,3600 MHz
Maximum internal memory128 GB
Unbuffered memoryYes
Processor
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen
Maximum number of SMP processors1
Processor socketSocket TR4
Internal I/O
Number of M.2 (M) slots2
USB 3.1 (3.1 Gen 2) connectors1
Front panel connectorYes
12V power connectorYes
USB 2.0 connectors2
USB 3.0 (3.1 Gen 1) connectors2
Number of SATA III connectors6
Number of EATX power connectors1
Number of chassis fan connectors3
Front panel audio connectorYes
EPS power connector (8-pin)Yes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
Back panel I/O ports
USB 3.0 (3.1 Gen 1) Type-A ports quantity8
USB 3.1 (3.1 Gen 2) Type-A ports quantity1
USB 3.1 (3.1 Gen 2) Type-C ports quantity1
S/PDIF out portYes
Ethernet LAN (RJ-45) ports1
Technical details
Motherboard chipset familyAMD
Motherboard chipsetAMD X399
Parallel processing technology support2-Way CrossFireX,2-Way SLI,3-Way CrossFireX,3-Way SLI
Motherboard form factorATX
Component forPC
Audio
Audio systemSupremeFX S1220A
Audio output channels7.1 channels
Networking
Ethernet LANYes
Wi-FiYes
Wi-Fi standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Wake-on-LAN readyYes
LAN controllerIntel I211-AT
Ethernet interface typeGigabit Ethernet
BluetoothYes
Bluetooth version4.2
Performance
Motherboard chipset familyAMD
Motherboard chipsetAMD X399
RAID levels0, 1, 10
Audio systemSupremeFX S1220A
Audio output channels7.1 channels
Motherboard form factorATX
Component forPC
Graphics
Parallel processing technology support2-Way CrossFireX,2-Way SLI,3-Way CrossFireX,3-Way SLI
Expansion slots
PCI Express x1 (Gen 2.x) slots1
PCI Express x4 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots4
BIOS
BIOS typeUEFI AMI
Clear CMOS jumperYes
BIOS memory size16 MB
ACPI version6.1
Storage controllers
RAID levels0, 1, 10
Software
Drivers includedYes
Weight & dimensions
Width12" (305 mm)
Depth10.6" (269 mm)
Packaging content
ManualYes
Drivers includedYes
Cables includedSATA
