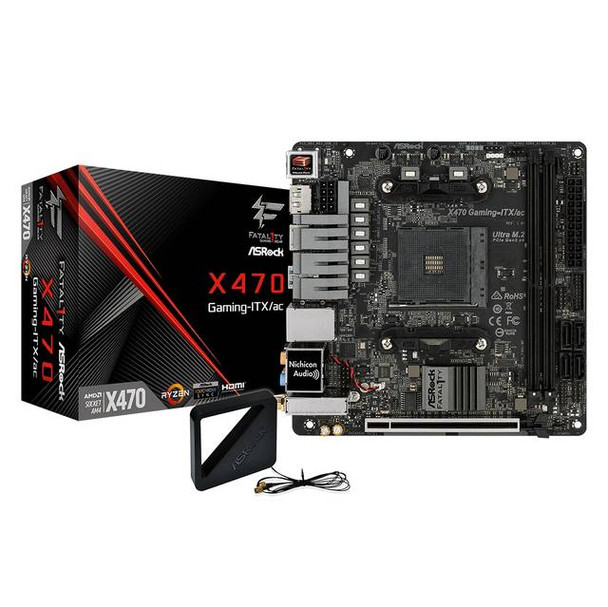

ASRock Fatal1ty X470 Gaming-ITX/ac Socket AM4/ AMD X470/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ Mini-ITX Mot

(No reviews yet) Write a Review
Brand:
ASRock
Part Number #
X470 GAMING-ITX/AC
Availability:
In Stock
$630.92 $525.77
- You save $105.15
  • ASRock Fatal1ty X470 Gaming-ITX/ac Socket AM4/ AMD X470/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ Mini-ITX Mot
Don't like the price? Make an offer!
Get bulk pricing

Description

Specifications

  • Mfr Part Number: X470 GAMING-ITX/AC
  • CPU: Socket AM4
    • Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
    • Digi Power design
    • 8 Power Phase design
    • Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
  • Chipset: AMD Promontory X470
  • Memory: 2x DDR4-3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 32GB (Pinnacle Ridge); 2x DDR4-3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 32GB (Summit Ridge); 2x DDR4-3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB (Raven Ridge)
  • Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8), 1x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O), 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  • Storage:
    • SATA: 4x SATA3 Ports, Support RAID 0, 1, 10, NCQ, AHCI and Hot Plug
    • M.2: 1x Ultra M.2 Port (M Key), supports type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
  • Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC
  • LAN: Intel I211AT Gigabit Ethernet Controller, Dual-Band 802.11 a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 5.0 + High speed class II
  • Ports: 2x USB 3.1 Gen 2 Ports (1 Type-A rear, 1 Type-C rear), 4x USB 3.1 Gen 1 Ports (2 rear, 2 via headers), 4x USB 2.0 Ports (2 via headers),  2x Antenna Ports,1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x Optical SPDIF Out Port, 1x DisplayPort, 1x RJ45 LAN Port with LED, Audio I/O Jacks
  • Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power Connector
  • Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
